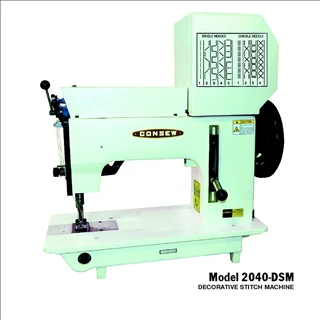

Consew Model 2040-DSM
Decorative Stitch Machine:Ā Extra Heavy Duty, Single Needle/Double Needle, Drop Feed Lockstitch Machine
With:Ā SEVEN DIFFERENT CAMS
FOR ORNAMENTAL STITCHING
LARGE OSCILLATING SHUTTLE
Ā
Applications
- Suitable for sewing cut pieces and decorative sewing of upholstery, shoes, suitcases, canvas, backpacks and automotive trim.
- For sewing heavy weight materials such as canvas, vinyl, leather, synthetics and various coated, laminated and rubberized fabrics.
- Designed for decorative sewing using thick thread and thick materials.
Features

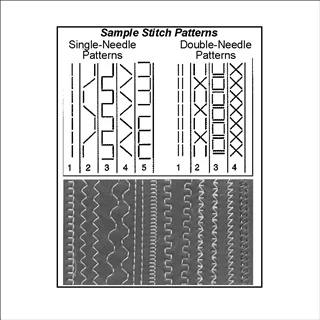

- Comes with 7 different cams for up to 14 different decorative stitches
- Can operate as a single-needle or a double-needle machine
- Easy changeable cams
- Large Oscillating shuttle
- 13/16ā / 20mm presser foot lift by footĀ (12mm by hand)
- Drop feed
- Three row feeder
- Also available: Model 2040-DSM-UF with upper feed.
ADDITIONAL INFORMATION
- 2040-DSM Spec Sheet (PDF)
Specifications
| Number of Needles | 2 (Double) |
| Feeding Mechanism | Drop Feed |
| Speed, Max (S.P.M.) | 800 |
| Clearance Under Presser Foot | 12mm by hand / 20mm by foot |
| Needle | DYX3 |
| Hook | KSP204N |
| Needle Distances | 6mm, 5mm |
| Motor | 500W, 3/4HP, 1400RPM |
| Stitch | 0 ~ 10 mm |
$4,267.20
Original: $12,192.00
-65%Consew Model 2040-DSMā
$12,192.00
$4,267.20Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
Decorative Stitch Machine:Ā Extra Heavy Duty, Single Needle/Double Needle, Drop Feed Lockstitch Machine
With:Ā SEVEN DIFFERENT CAMS
FOR ORNAMENTAL STITCHING
LARGE OSCILLATING SHUTTLE
Ā
Applications
- Suitable for sewing cut pieces and decorative sewing of upholstery, shoes, suitcases, canvas, backpacks and automotive trim.
- For sewing heavy weight materials such as canvas, vinyl, leather, synthetics and various coated, laminated and rubberized fabrics.
- Designed for decorative sewing using thick thread and thick materials.
Features
- Comes with 7 different cams for up to 14 different decorative stitches
- Can operate as a single-needle or a double-needle machine
- Easy changeable cams
- Large Oscillating shuttle
- 13/16ā / 20mm presser foot lift by footĀ (12mm by hand)
- Drop feed
- Three row feeder
- Also available: Model 2040-DSM-UF with upper feed.
ADDITIONAL INFORMATION
- 2040-DSM Spec Sheet (PDF)
Specifications
| Number of Needles | 2 (Double) |
| Feeding Mechanism | Drop Feed |
| Speed, Max (S.P.M.) | 800 |
| Clearance Under Presser Foot | 12mm by hand / 20mm by foot |
| Needle | DYX3 |
| Hook | KSP204N |
| Needle Distances | 6mm, 5mm |
| Motor | 500W, 3/4HP, 1400RPM |
| Stitch | 0 ~ 10 mm |
