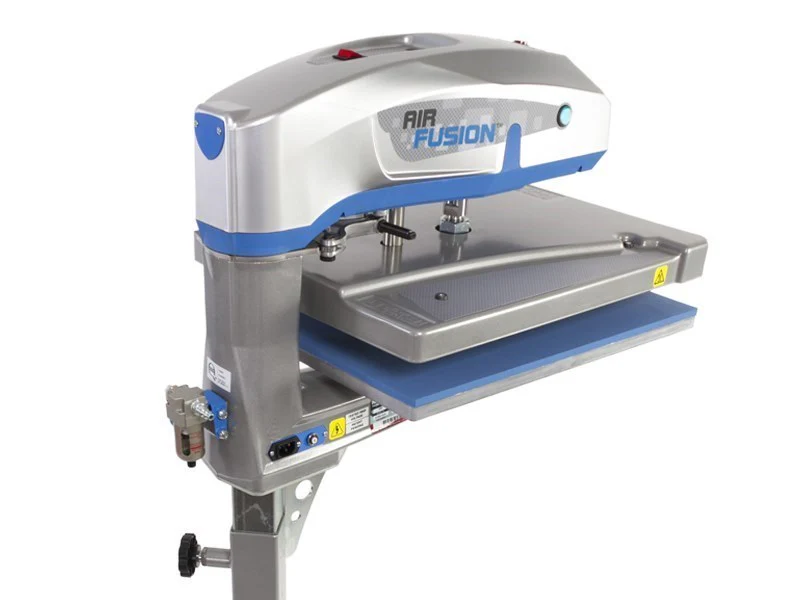

Hotronix Air Fusion Heat Press 16"x20" on pedestal

Smarter Air-Powered Technology. Faster Production.

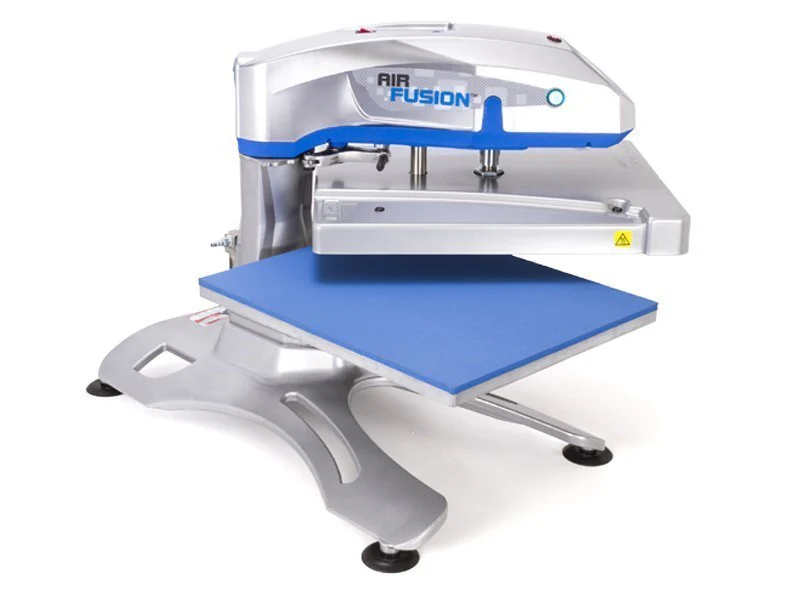

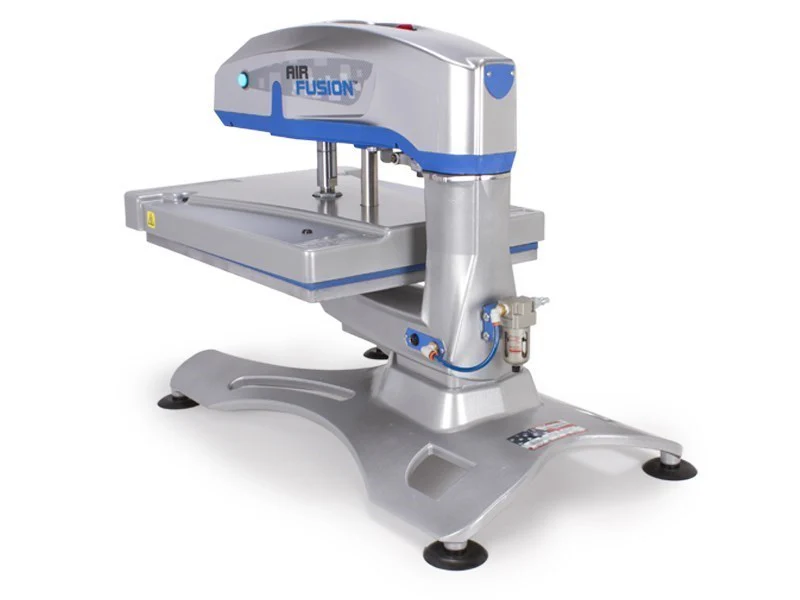

Perfect for high-volume shops, specialty decorators, and Direct-to-Garment printing, the air-powered Air Fusion IQ heat press features a 16" x 20" heated upper platen and swing motion, for a heat-free workspace. Available in tabletop or adjustable-height pedestal stand models.

• New Fusion IQ™ controller features troubleshooting and self-diagnostic capabilities
• Track performance and print productivity reports from anywhere with the new Hotronix Online Portal
• New larger, higher resolution screen with improved touchscreen response

To make sure you're getting a Hotronix®, look for the blue!

• Exclusive Auto-Adjust Pressure™ automatically adjusts to the thickness of the item being printed
• Full Threadability™ on the lower platen: position the garment, rotate, and decorate any area
• Auto open, auto swing design, with a foot pedal reduces fatigue
• Swing motion allows for a heat-free workspace
• Touchscreen stores frequently used settings, production cycle counter, and auto on/off capability
• Data interface port allows for future software upgrades
• User-safe two-hand push-button operation
• 120 PSI for high-pressure applications
• Optional quick-change platens; no tools required
• Program up to four different pressure and time settings
• Die pressure cast 365 aluminum corrosion-free framework
• Requires air compressor (not included) with minimum ½ horsepower and 2-gallon hold tank. Uses 2.3 CFM
• Electrical Options:
  120 v; 15 amps; 1800 w
  240 v; 15 amps; 1800 w
• Must have dedicated circuit breaker
